PROSAUNAS Custom Himalayan Salt Sauna Wall Kit

DESCRIPTION

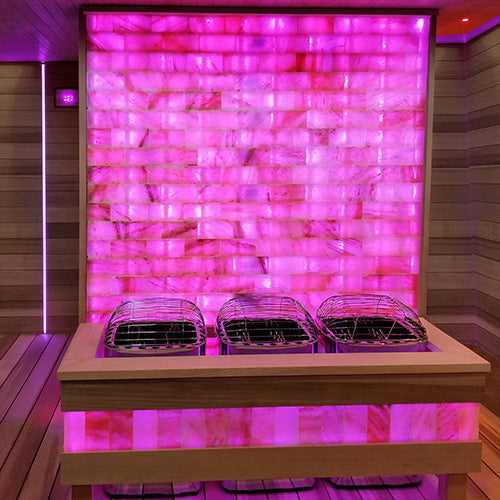

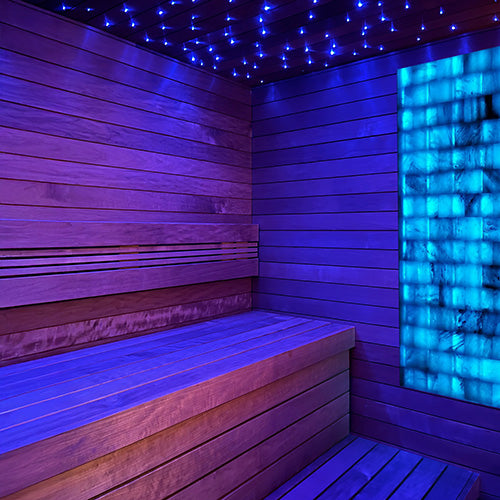

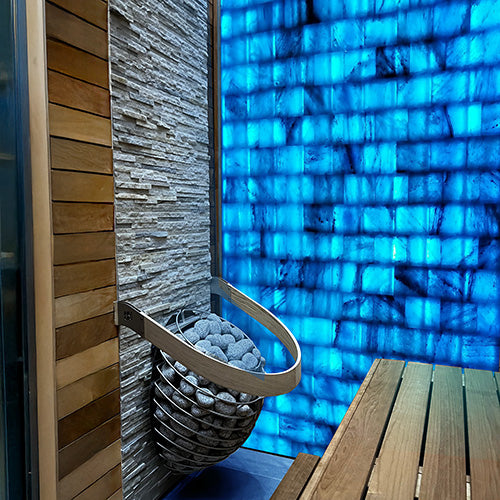

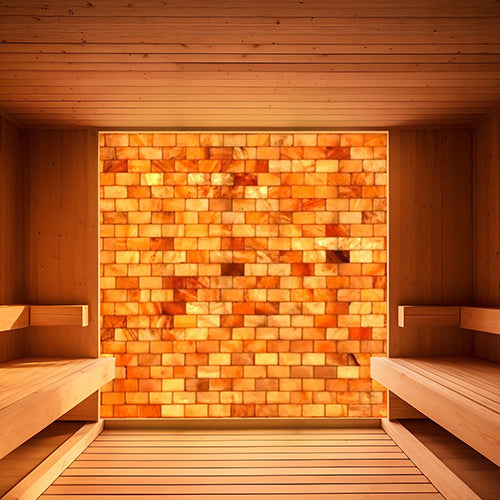

The ProSaunas Himalayan Salt Wall transforms the sauna interior into a visually striking wellness environment, bringing the natural texture, warm color, and ambient glow of authentic Himalayan salt bricks into a professional-quality, DIY-friendly installation. Authentic pink or white salt bricks, mined from the Khewra Salt Mine in the Himalayas, slide onto stainless-steel mounting channels for a secure, cleanly engineered installation that allows for straightforward maintenance access after the fact.

Backlighting is provided by "dot-less" IP67-rated LED strip lights in white or RGB, producing an evenly distributed, ultra-premium ambient glow that appears to emanate from the salt itself. The system is controlled via RF wireless remote or mobile app for convenient adjustment of color and brightness. Available in four heights — 60, 72, 84, or 96 inches — all at a consistent 48 inch width, with mounting channels and LED strips trimmable to suit custom installations. Note that outdoor use in very humid or wet conditions may cause the salt to attract moisture and potentially stain surrounding surfaces.

FEATURES

• Authentic Himalayan salt bricks mined from the Khewra Salt Mine, available in pink or white
• Each 2 inch thick brick slides onto a stainless-steel mounting channel for a secure, maintainable DIY installation
• "Dot-less" IP67-rated LED strip lights produce an evenly distributed, ultra-premium ambient glow in white or RGB
• RF wireless remote and mobile app control for convenient brightness and color adjustment
• Full dimming range from 1 to 100 percent with a wireless signal distance of up to 98 feet
• Available in four heights: 60, 72, 84, or 96 inches — all at 48 inches wide
• Mounting channels and LED strips are trimmable for custom length installations
• Low-voltage 24V DC LED system for energy-efficient operation
• ETL and SGS certified LED strips; UL, CE, and FCC certified power supplies
• Complete kit includes everything required for a professional-looking installation

INCLUDES

• Himalayan salt bricks — pink or white
• Salt block mounting channel — stainless steel
• IP67 LED strip light — white or RGB
• RF and WiFi driver
• Handheld wireless remote
• Power supply
• Light cables

SPECIFICATIONS

Salt Brick

• Dimensions: 4 inches H x 8 inches L x 2 inches D
• Available Colors: Pink, White
• Channel Notch: All 4 sides
• Weight: 5 lbs each

Salt Wall Configurations

• 60 inch x 48 inch: Overall dimensions 61.75 inches H x 48 inches W x 4.125 inches D — total weight 476 lbs — 15 LED strips — 180W white / 274W RGB — dual 120W power supplies
• 72 inch x 48 inch: Overall dimensions 74.125 inches H x 48 inches W x 4.125 inches D — total weight 571 lbs — 18 LED strips — 216W white / 328W RGB — dual 160W power supplies
• 84 inch x 48 inch: Overall dimensions 86.5 inches H x 48 inches W x 4.125 inches D — total weight 666 lbs — 21 LED strips — 252W white / 384W RGB — dual 160W power supplies
• 96 inch x 48 inch: Overall dimensions 98.875 inches H x 48 inches W x 4.125 inches D — total weight 760 lbs — 24 LED strips — 288W white / 439W RGB — dual 160W power supplies

Mounting Channel

• Dimensions: 0.9375 inches H x 47.75 inches W x 2.875 inches D
• Material: Stainless steel
• Weight: 1.6 lbs

White LED Strip (per 4 foot section)

• Operating Voltage: 24V DC
• Rated Wattage: 3W per foot
• Actual Wattage: 12W
• Lumens: 330
• Connection: IP67 twist lock 2-pin, 10 inch connection length
• Operating Temperature: -13 degrees to 230 degrees Fahrenheit
• IP Rating: IP67
• Certifications: ETL, SGS

RGB LED Strip (per 4 foot section)

• Operating Voltage: 24V DC
• Rated Wattage: 4.57W per foot
• Actual Wattage: 18.28W
• Lumens: 820 (Red 170, Green 548, Blue 102)
• Connection: IP67 twist lock 4-pin, 10 inch connection length
• Operating Temperature: -13 degrees to 230 degrees Fahrenheit
• IP Rating: IP67
• Certifications: ETL, SGS

120W Power Supply (60 inch x 48 inch wall)

• Input: 120V AC — Output: 24V DC — 120W — 1.4A AC / 5A DC
• Operating Temperature: -22 degrees to 158 degrees Fahrenheit
• IP Rating: IP20 — Certifications: UL, CE, FCC

160W Power Supply (72, 84, and 96 inch x 48 inch walls)

• Input: 120V AC — Output: 24V DC — 160W — 1.85A AC / 6.67A DC
• Operating Temperature: -22 degrees to 158 degrees Fahrenheit
• IP Rating: IP20 — Certifications: UL, CE, FCC

RF Driver

• Input: 24V DC — Output: 12 to 24V DC — 5 channels at 3A per channel — max output 5 channels x 72W
• Light Capacity: 4 lights per 25 feet per driver
• Operating Temperature: -22 degrees to 131 degrees Fahrenheit
• IP Rating: IP20 — Certifications: UL, CE, FCC

RF Dimming Remote

• Operating Voltage: 3V DC (CR2032 battery)
• Dimming Range: 1 to 100 percent
• Signal Distance: Up to 98 feet
• Operating Temperature: -22 degrees to 131 degrees Fahrenheit
• IP Rating: IP20 — Certifications: CE, EMC, LVD, RED
