DESCRIPTION
The ThermaSol PRO Series III is one of the most technologically advanced and reliable steam shower generators available today, purposefully designed to consistently deliver steady steam at precise temperatures for long lasting enjoyment.
SmartSteam
The most desired feature among steam shower enthusiasts, ThermaSol's patented SmartSteam system intelligently monitors the power output needed to sustain the desired temperature, ensuring that steam is delivered at a constant rate without lags, bursts, or temperature fluctuations. The result is a perfect steam shower oasis without unwelcome interruptions.
FastStart
Constructed from an industrial grade stainless steel, the generator highlights a split tank design to ensure unit longevity and operational efficiency. By separating the heating function from the water feed function, FastStart technology allows steam to be produced within seconds of turning on the system.
PowerFlush
As a pressurized inner tank self-cleaning system, the included PowerFlush feature is designed to break up any sediments that may collect inside of your generator. It is recommended to run a PowerFlush cycle at least once a month to extend the life of your generator.

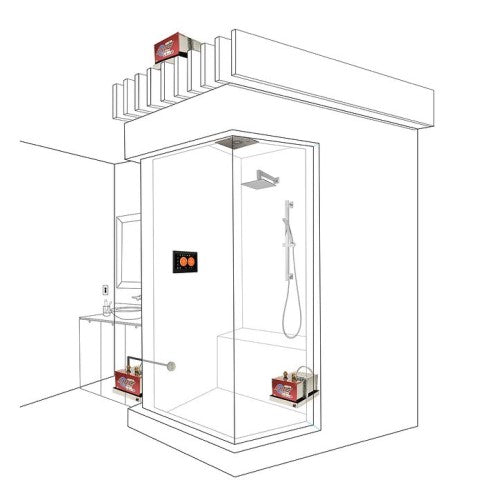

PRO Series III generators additionally come equipped with ThermaSol's two-way digital CAN bus technology, helping the ECU transmit data between the generator and control safely and securely without complex wiring harnesses. The generator can be installed up to 50 feet away from the shower, and must be placed in an accessible, climate-controlled space protected from weather conditions.
Backed by ThermaSol's limited lifetime warranty, the PRO Series III combines timeless quality with sophisticated performance for those embarking on their wellness journey.
FEATURES
Industrial grade stainless-steel construction
SmartSteam for constant steam at a constant rate
FastStart for steam in seconds, not minutes
PowerFlush for protecting generator operation and longevity
Incoloy heating elements for superior corrosion protection
Split tank design to provide efficient steam production
Stainless-steel drain pan for easy maintenance
Two-way digital CAN bus technology for safe and reliable operation
Designed, engineered and built in the U.S.A.
Limited lifetime warranty
INCLUDES
Steam Shower Generator
208-240 Volt Power Cord (for generators under 11kW)
Stainless-Steel Drain Pan
3/8" Braided Stainless Steel Hose & Fitting
In-Line Water Screen Kit
Pre-Plumbed Safety Relief Valve
Steamhead Housing & Cable Kit
50' CAN Bus Cable for the Controller
Installation Instructions
Limited Lifetime Warranty
SPECIFICATION
Safety Valve Pre-Plumbed
Width 18" (45.7 cm)
Depth 23" (58.4 cm)
Height 14" (35.6 cm)
Input Voltage 208-240 VAC, 1-Phase
Water Inlet 3/8" Compression
Steam Outlet 1/2" NPT
Drain Pan 3/4" NPT
MODELS
PROIII-84 – 6.0 kW – Maximum Room Size 84 cu. ft. – 28 AMPS – NEMA 6-30P – 44 lbs (20 kg)
PROIII-140 – 8.0 kW – Maximum Room Size 140 cu. ft. – 37 AMPS – NEMA 6-50P – 44 lbs (20 kg)
PROIII-240 – 10.0 kW – Maximum Room Size 240 cu. ft. – 46 AMPS – NEMA 6-50P – 44 lbs (20 kg)
PROIII-395 – 11.0 kW – Maximum Room Size 395 cu. ft. – 55 AMPS – Hardwired – 44 lbs (20 kg)
PROIII-575 – 15.0 kW – Maximum Room Size 575 cu. ft. – 69 AMPS – Hardwired – 48 lbs (21.8 kg)
PROIII-750 – 20.0 kW – Maximum Room Size 750 cu. ft. – 92 AMPS – Hardwired – 48 lbs (21.8 kg)
PROIII-1200 – 24.0 kW – Maximum Room Size 1200 cu. ft. – 110 AMPS – Hardwired – 48 lbs (21.8 kg)
INSTALLATION
Refer to the installation manual for setup instructions.
Installation Manual
Spec Sheet
